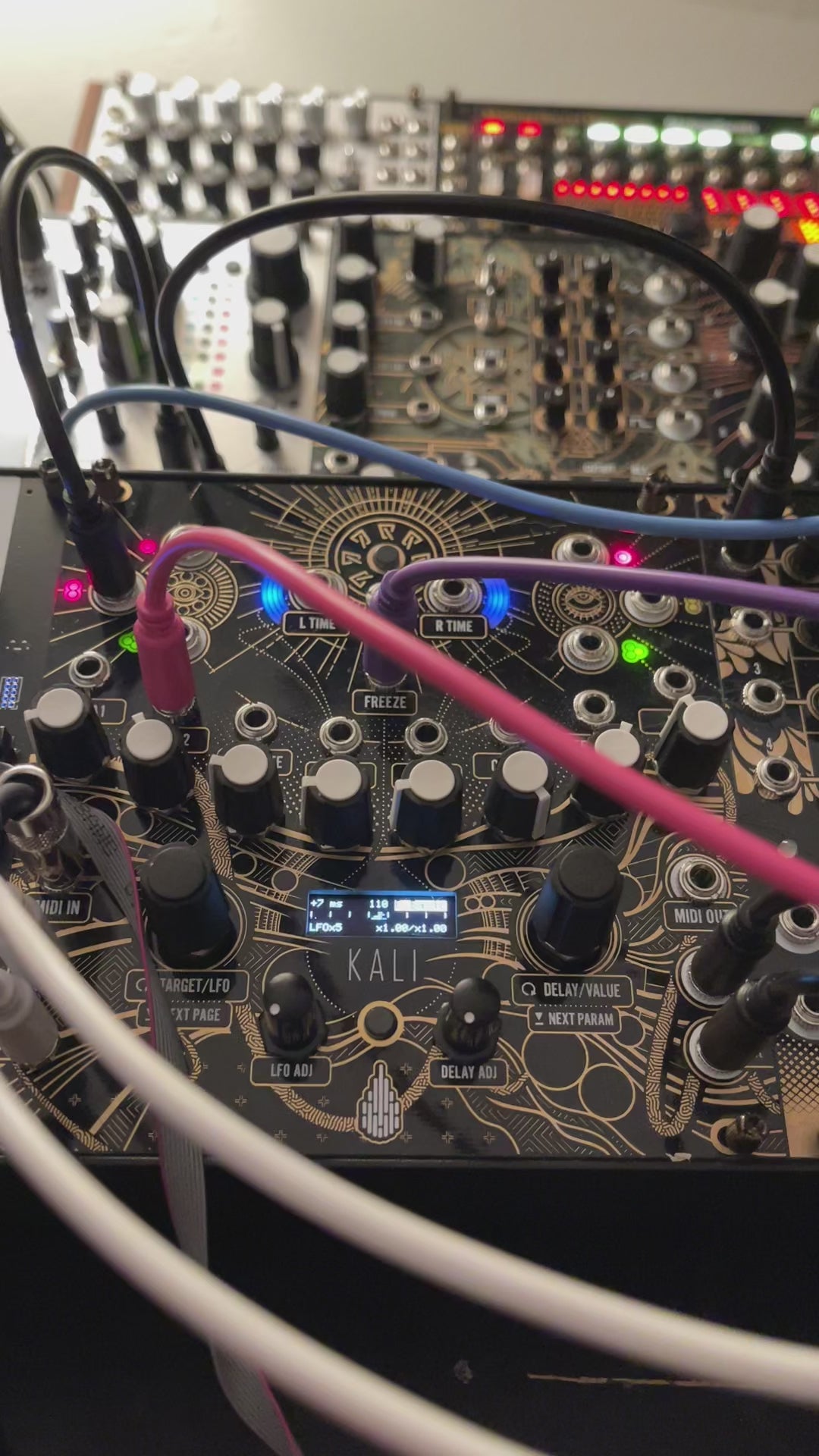

KALI

Regular price $375.00 USD
Regular price Sale price $375.00 USD
Sale Sold out
Shipping calculated at checkout.

Kali is the Boss of Time

*Currently building these to order, please allow 3 - 5 days to ship.


dsp.coffee dev discord - https://discord.gg/KxttAMc9tw

We are working on preparing documentation - in the meantime, for detailed information please visit https://github.com/joemisra/kali/wiki/KALI-Wiki

Firmware updates:

https://github.com/joemisra/kali/tree/main/firmware

---

Overview

The core idea for KALI is that complex and musical sonic patterns/beats can be created naturally by combining a modulated audio source with a time-domain (i.e. a delay) effect, especially if the modulation is synchronized to the effect.

Kali has two major sections to facilitate this.

  • 32-bit (Float) 48000khz Stereo Time Domain FX Processor
  • 6 x Bipolar 12-bit CV Outs (Approx -7v to 7v*) + 2 x Clocks

The L and R delay times are the main timebase to which everything else is synchronized; the rates of everything else can be adjusted in multiples of this time, both independently and (with the lfo rate knob) all at once.

* Not factory calibrated so there is some variation. Basic digital tuning of this range to balance + and - range is on the way.

Specs

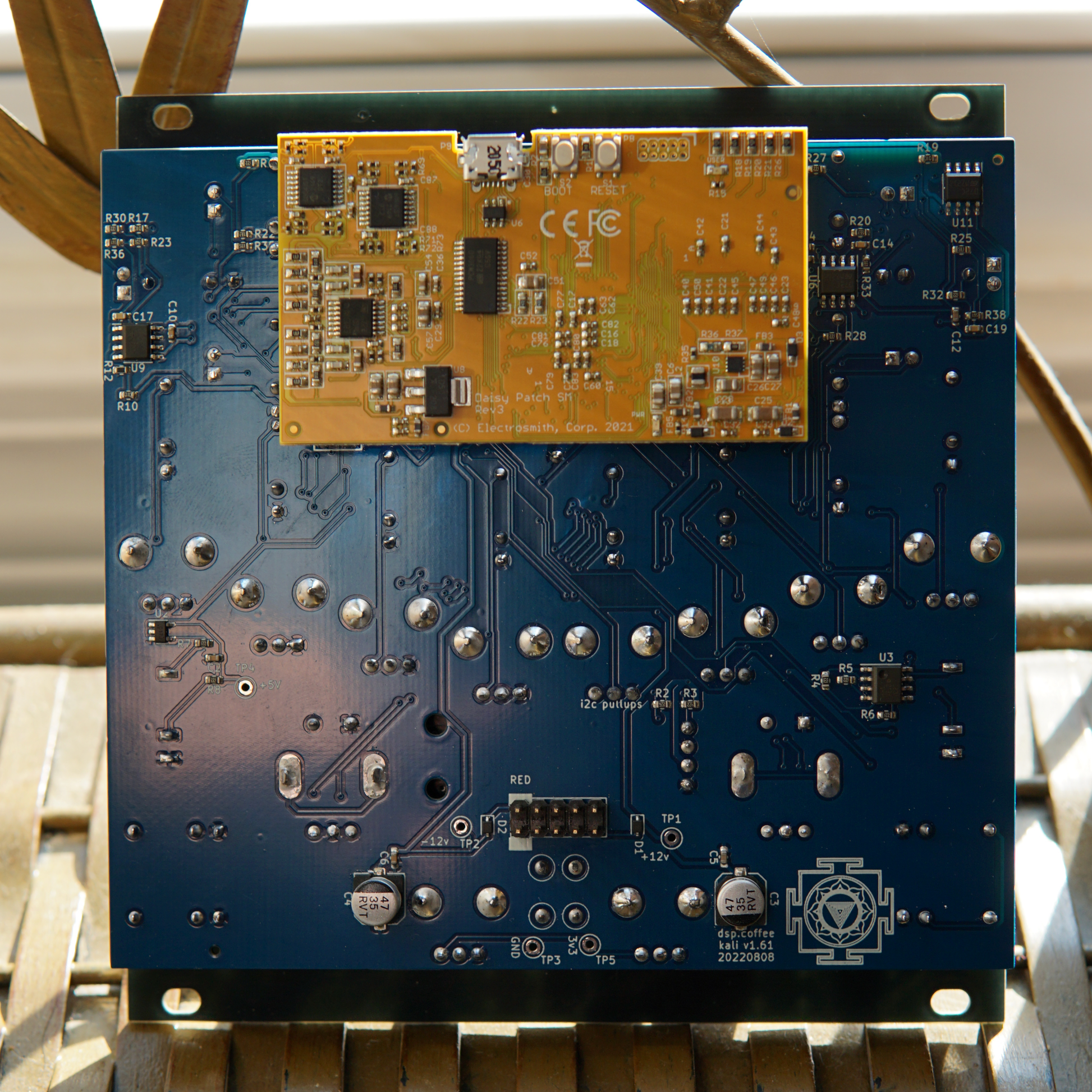

Kali is built around an Electrosmith Daisy Patch Submodule, an embedded development platform (STM32 H7 @ 480mhz) with a high fidelity PCM3060 codec.

Audio input/output is 48000khz @ 24-bit, internally 32-bit (floating point). Input gain (on PCM3060 itself) can be adjusted from -100db to +20db.

Because of the generous SDRAM on the Daisy Patch Submodule, these delay lines have a maximum time of roughly 150 seconds per channel (we cap it at 10 seconds in most modes as that has proven to be a good generally useful range, but this maximum can be changed).

CV outputs are all 12-bit, and lowpassed to mitigate aliasing. Output range is -7v to 7v, most LFO modes can be toggled between bipolar and unipolar output.

Synchronization
Sync in by pulse/trigger or TRS MIDI In (A or B, thx to lpzw modules https://leipzigwest.org/).
Pulse sync out x2

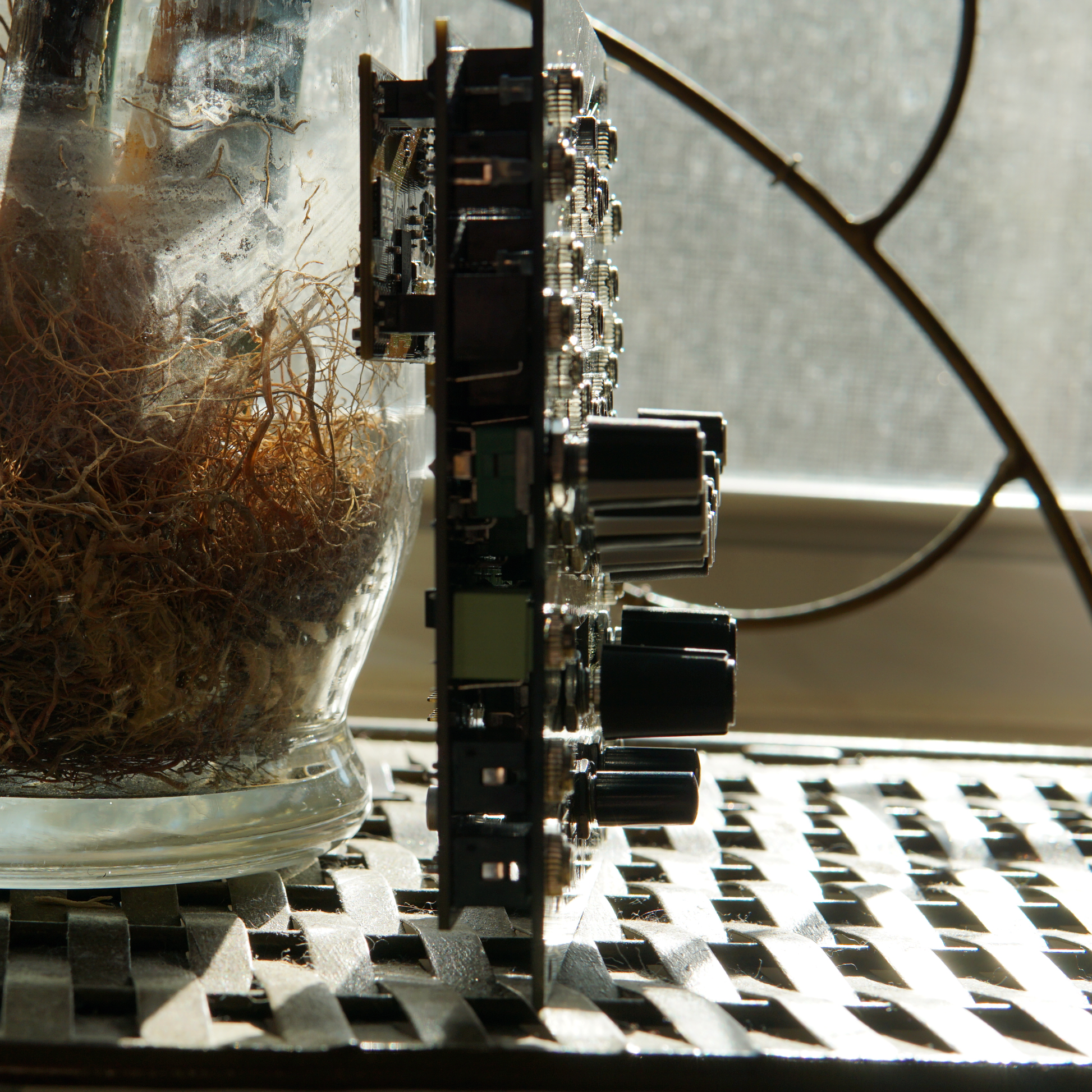

Skiff friendly at 29mm deep.

Current Draw (May vary w/ DSP usage)

200 mA

+12V

75 mA

-12V

0 mA

+5V

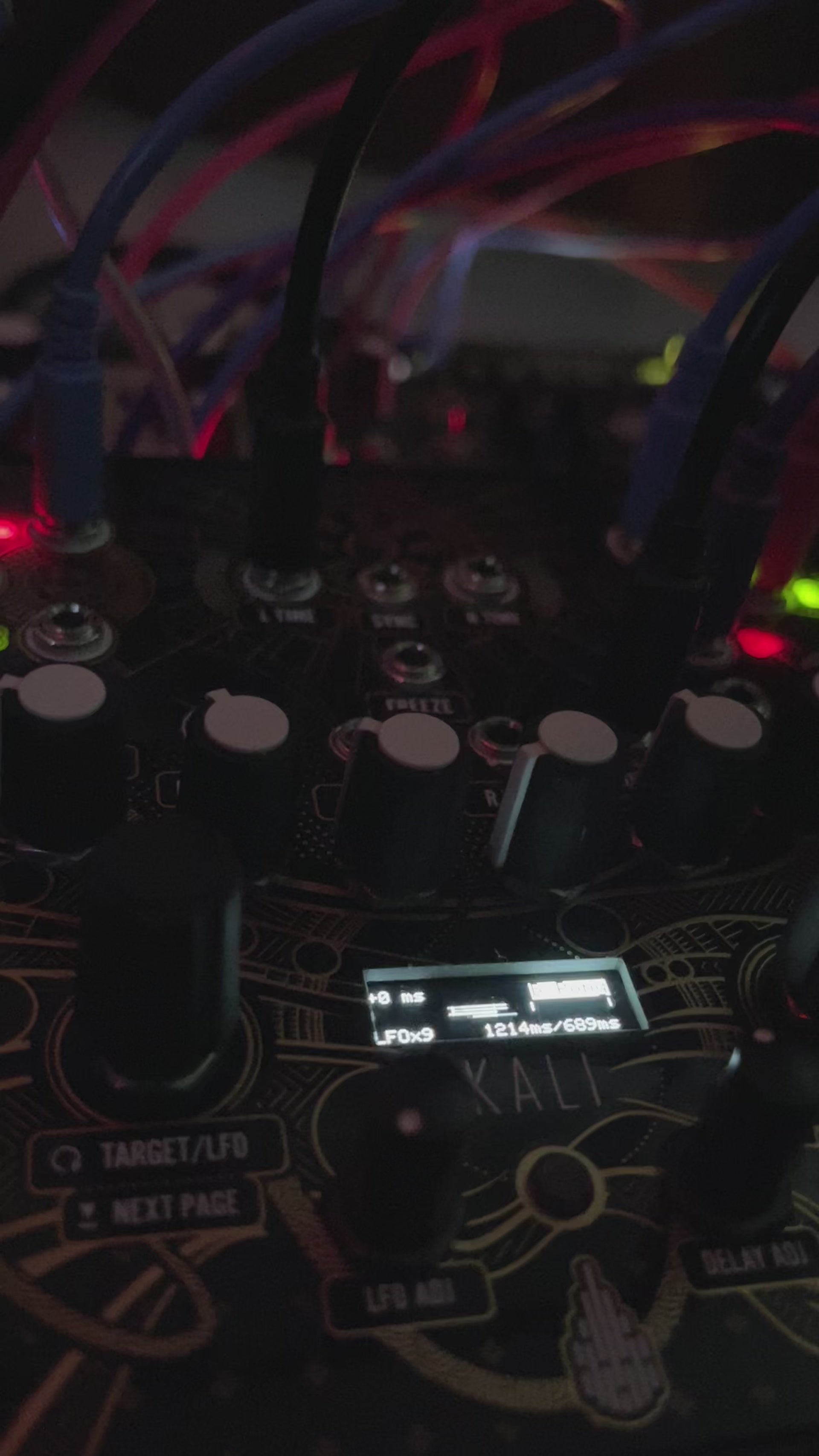

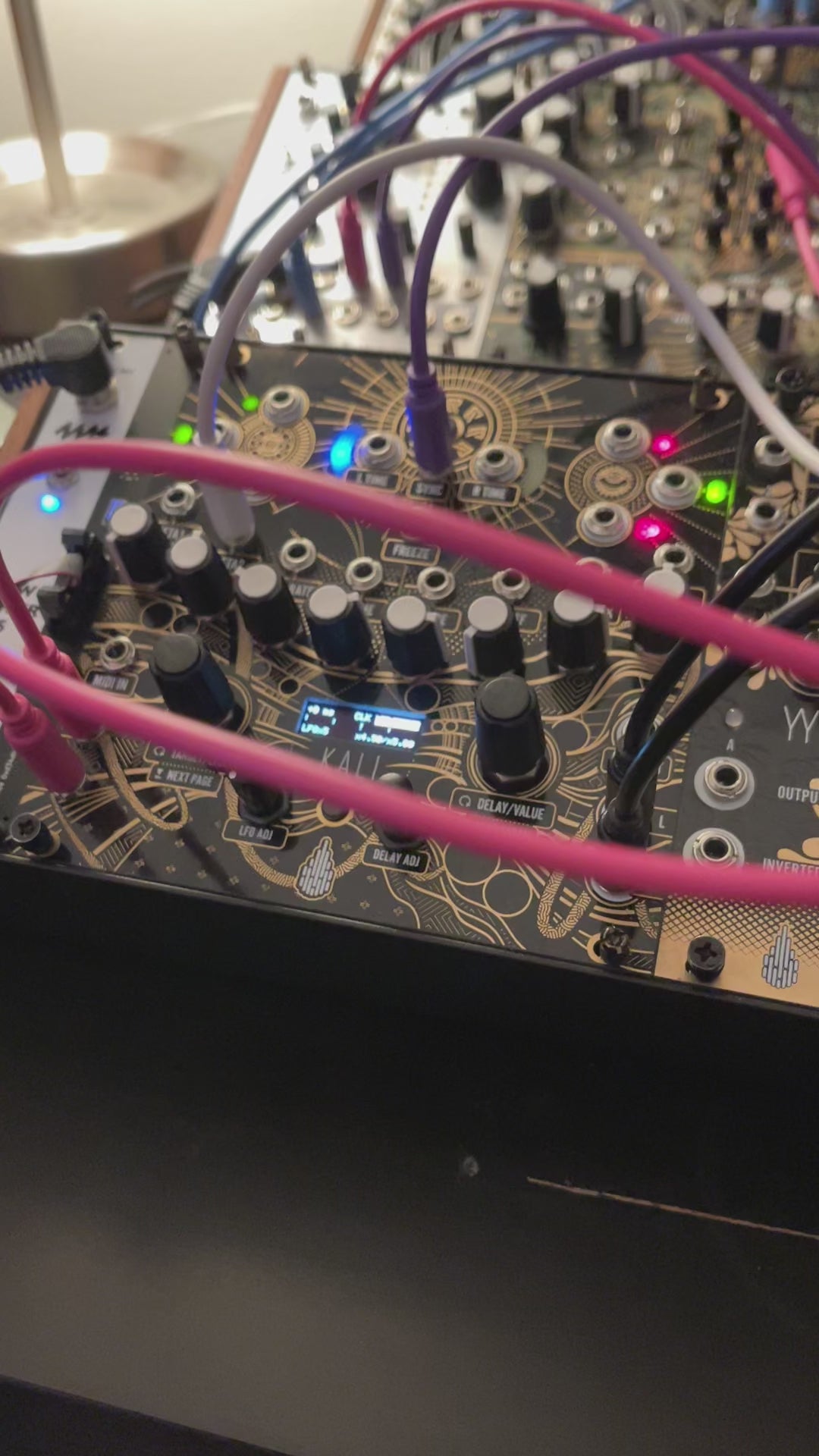

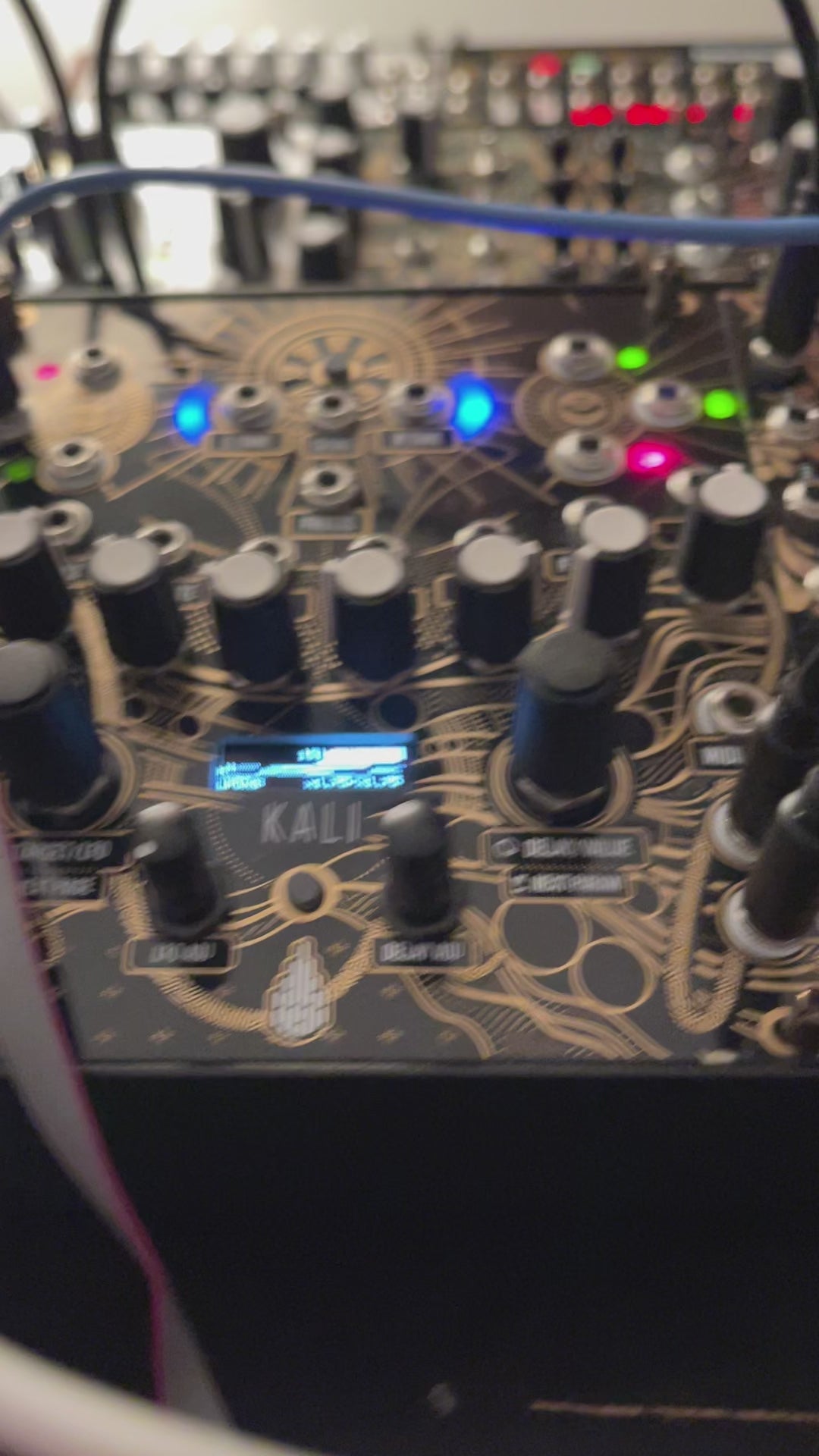

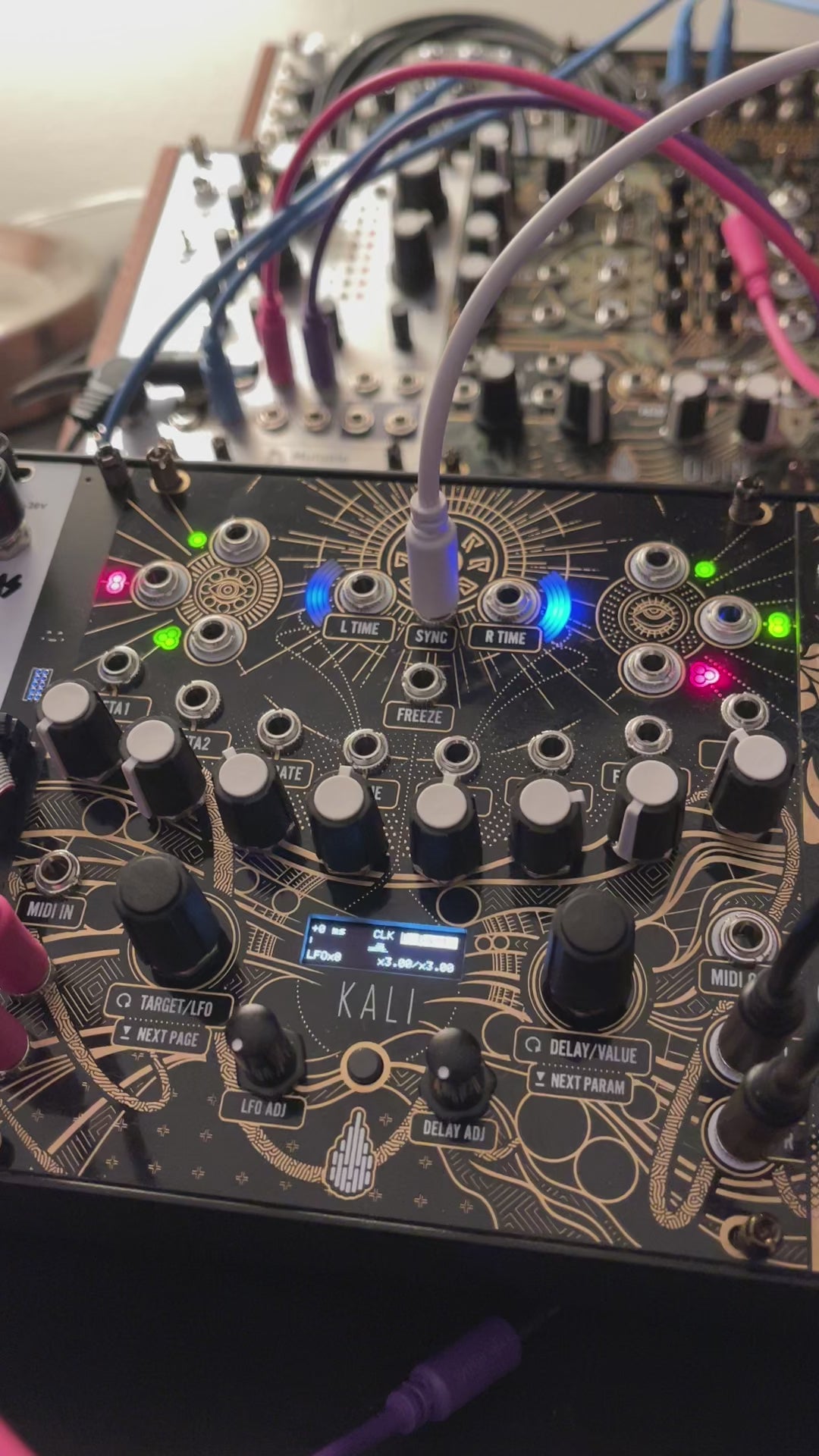

Demos

More demos & tutorials to come...
